NewJila Heterogeneous Flooring – 2.0 mm Commercial PVC Vinyl Sheet
INSIDE OUR FACTORY
Printing & multilayer production
Video unavailable on this network. Open the official film ↗
Heterogeneous sheet vinyl · FACTORY DIRECT
NewJila Heterogeneous Flooring
Printed in-house. Built to your specification.
DOTP formulation
0.1–0.7 mm wear layer
Factory OEM production
This product
- Format
- Roll
- Thickness
- Roll size
Physical samples are the final reference for colour, texture and finish.
MAKE YOUR SELECTION
Colours & designs
Select a colour to preview it. Your reference will be included in your sample or quotation request.
DETAILS THAT MATTER
Technical information & documents
The essentials are above. Explore the full details or request the documents for your selected construction.
View full product information & specifications
NewJila is a PVC commercial heterogeneous sheet by GILARDINO, tested to both GB (China) and EN (Europe) standards. Size: 2.0 mm × 2 m × 20 m roll, 0.3 mm wear layer. Fire rating B1 (GB 8624-2012), slip resistance R9 (GB/T 37798-2019), abrasion resistance ≤2.0 mm³ and TVOC emission ≤0.50 mg/(m²·h) (GB/T 29899-2024, 3-star rating).
Available Colors (15)

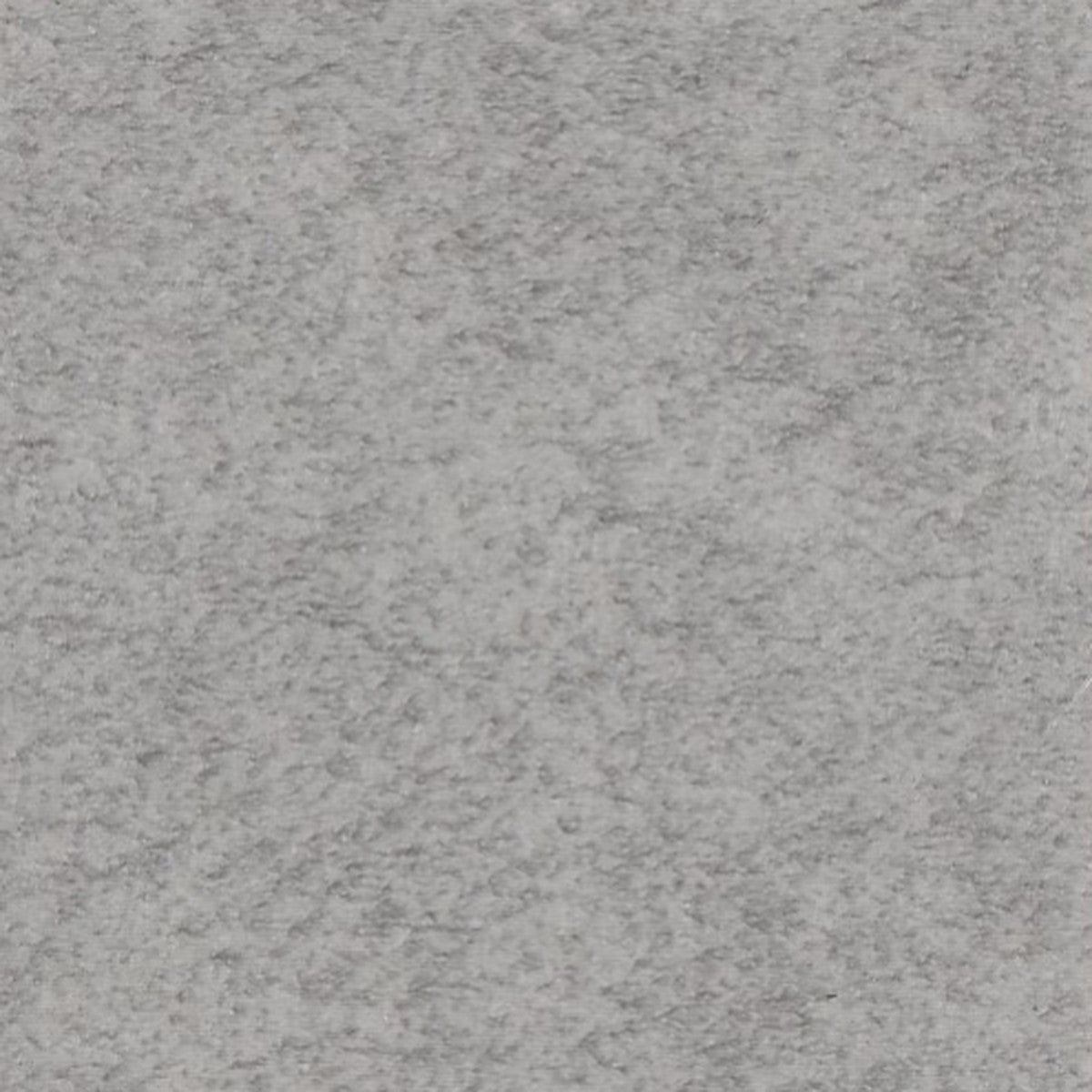

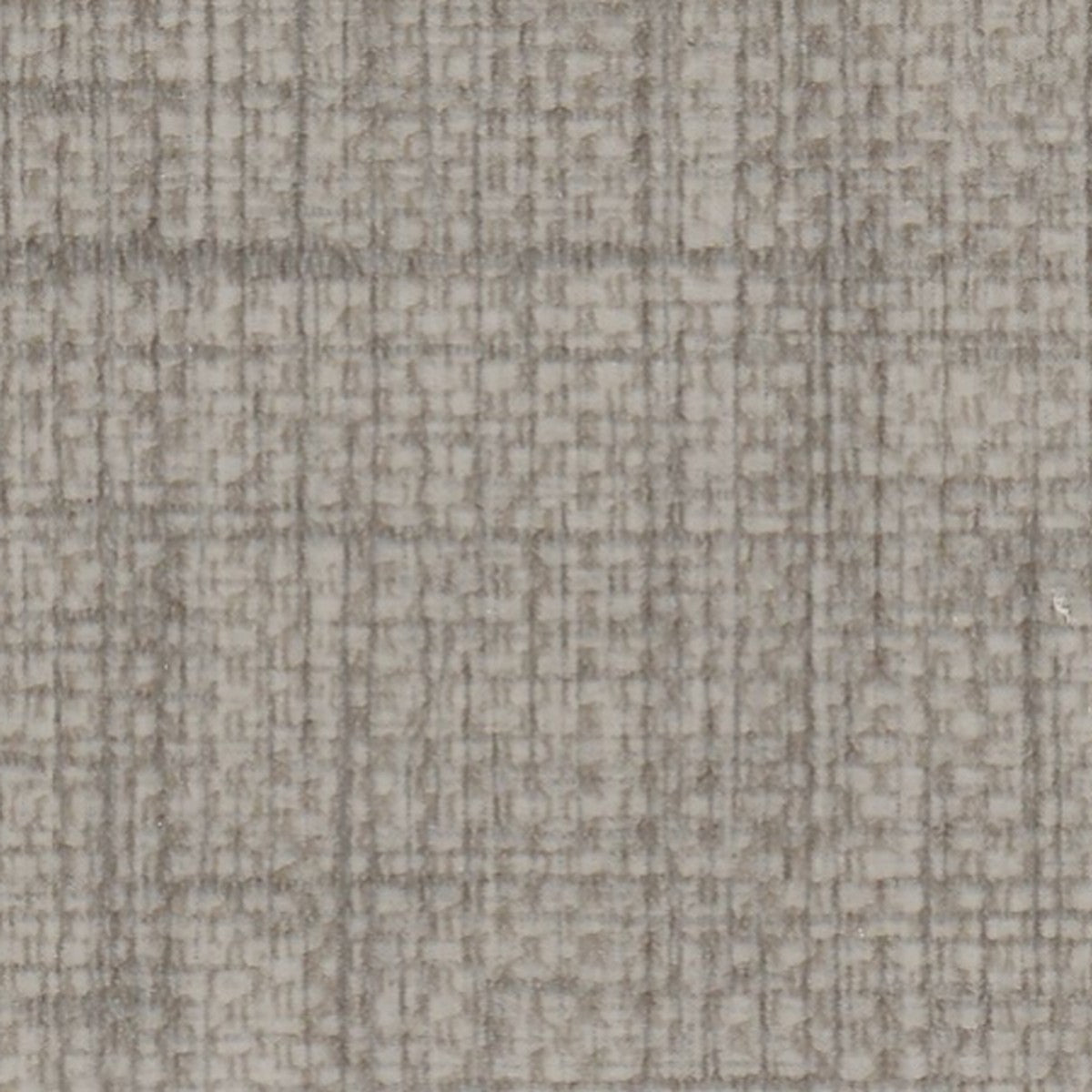

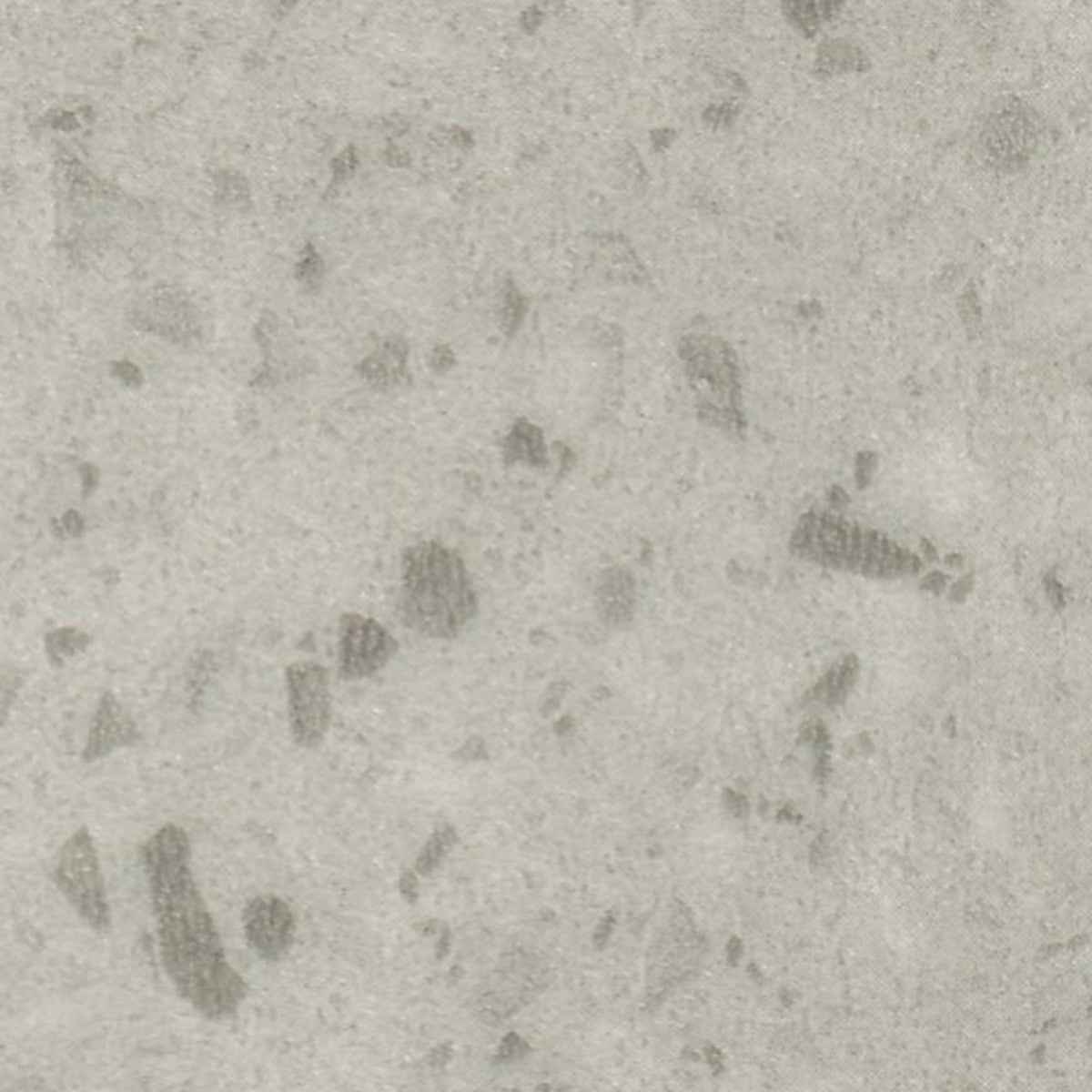

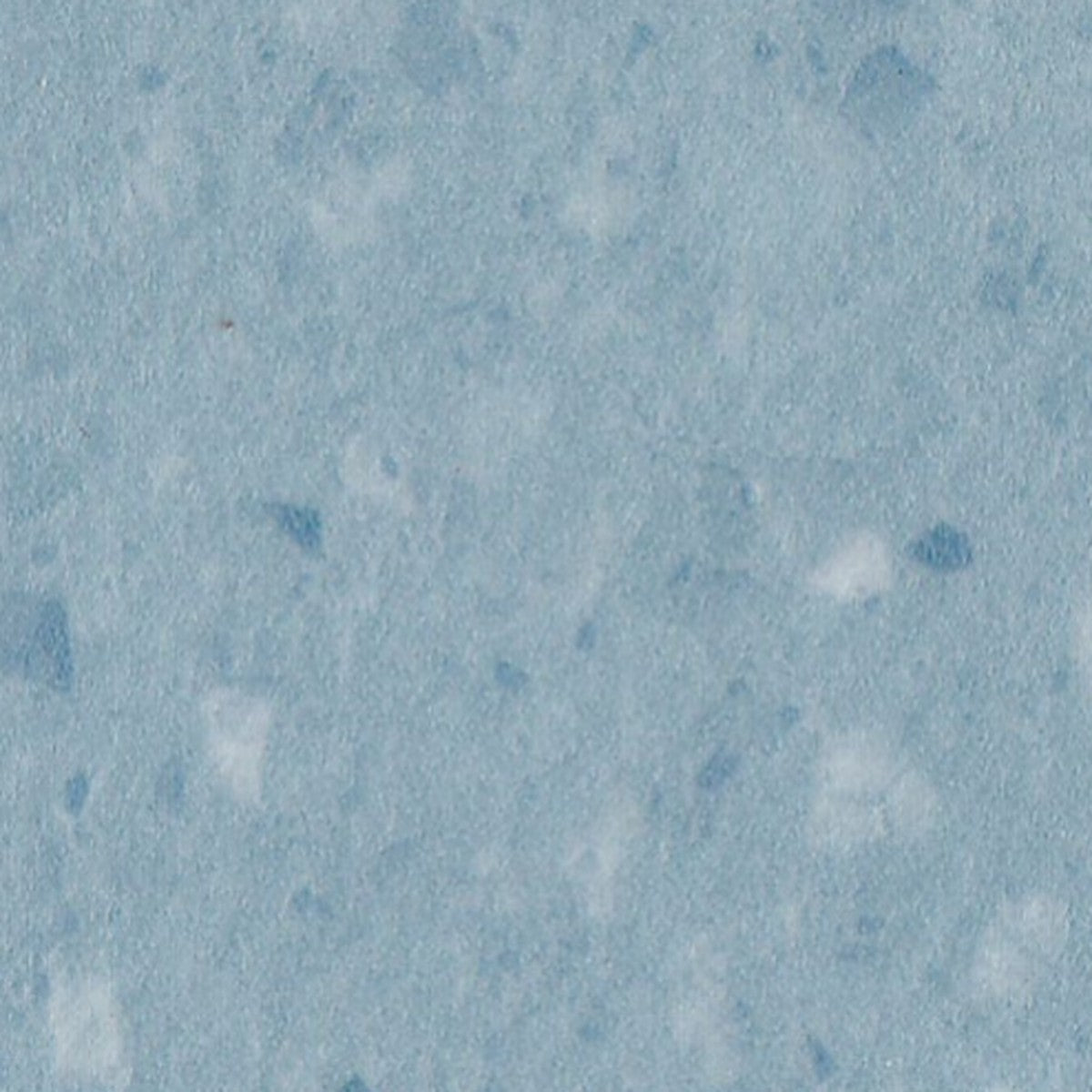

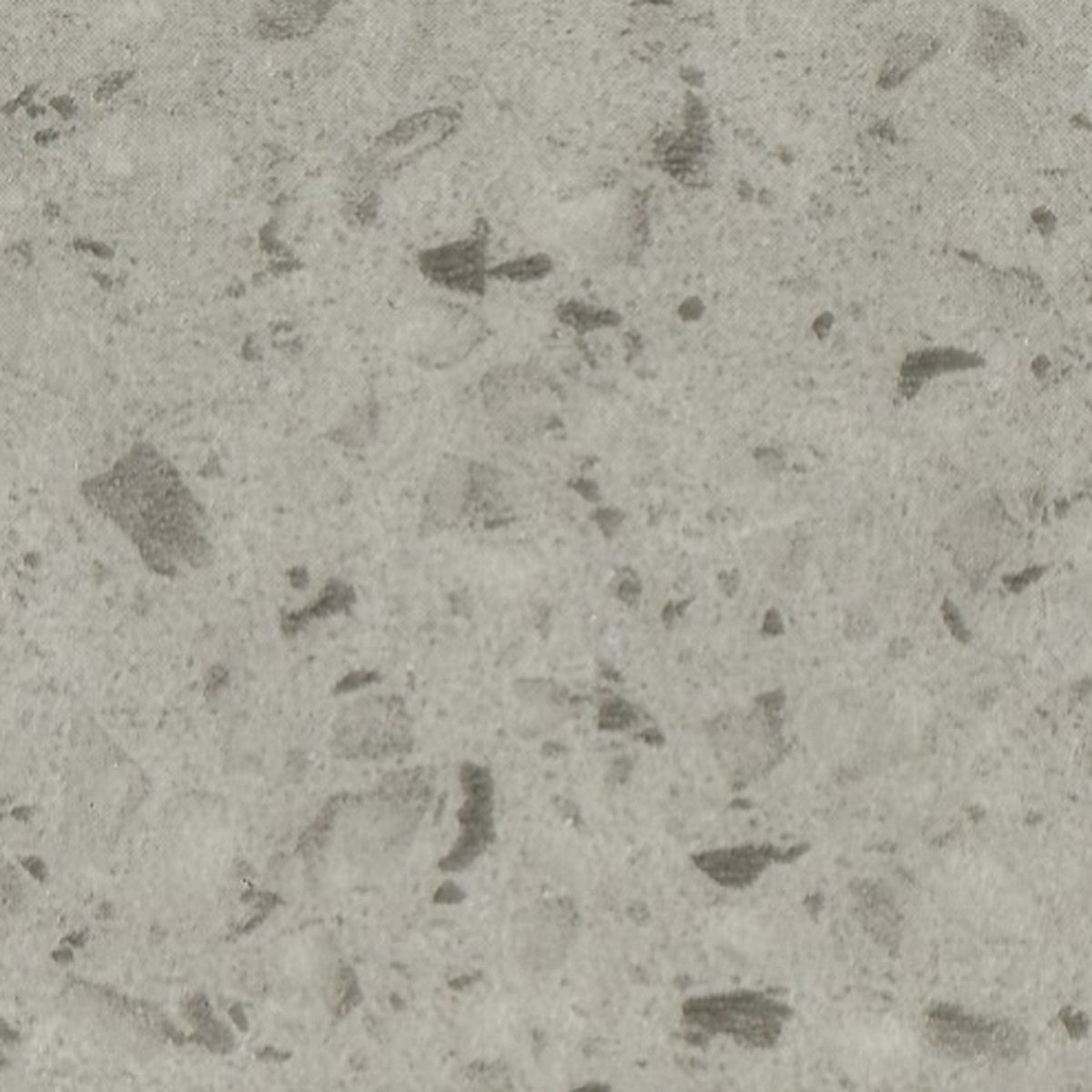

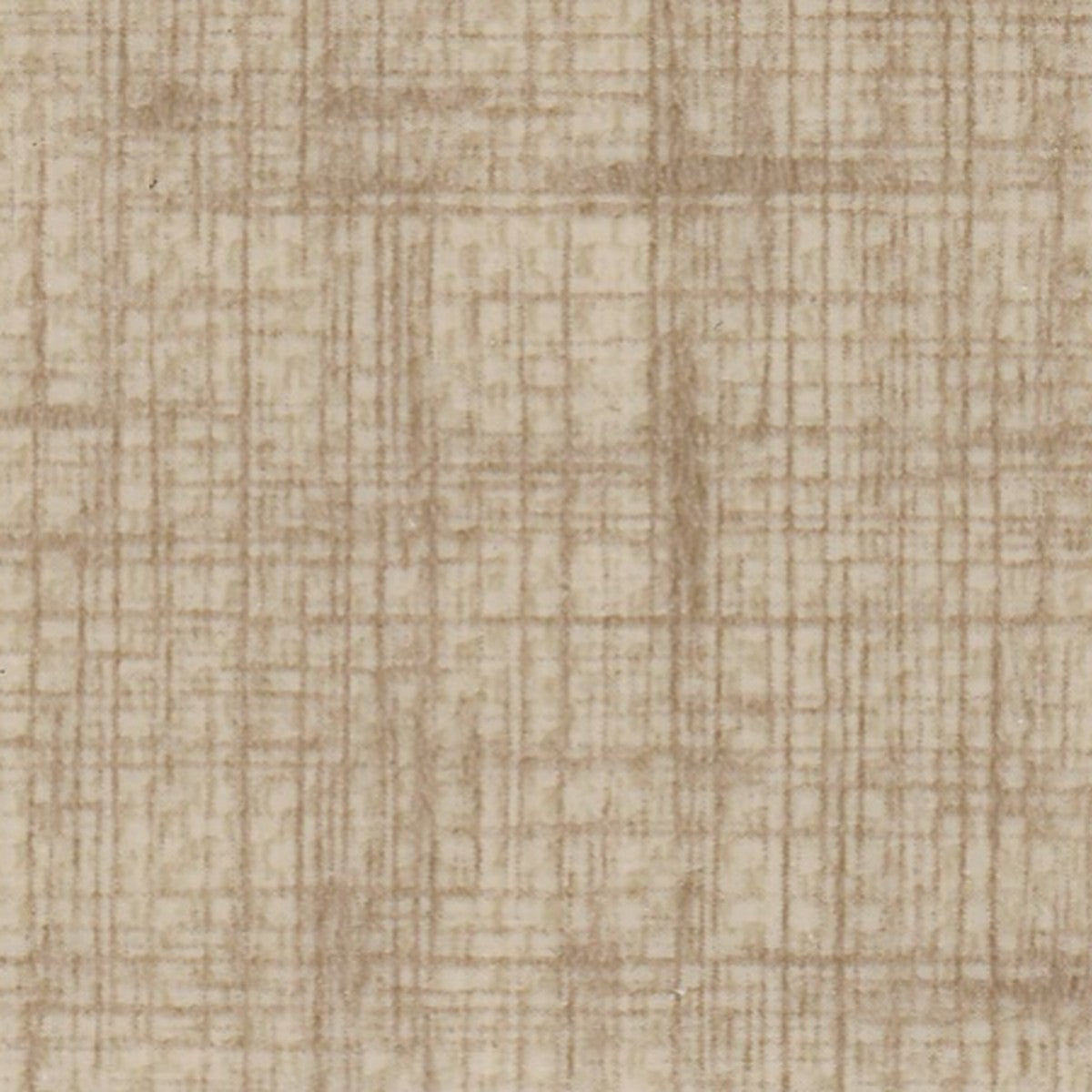

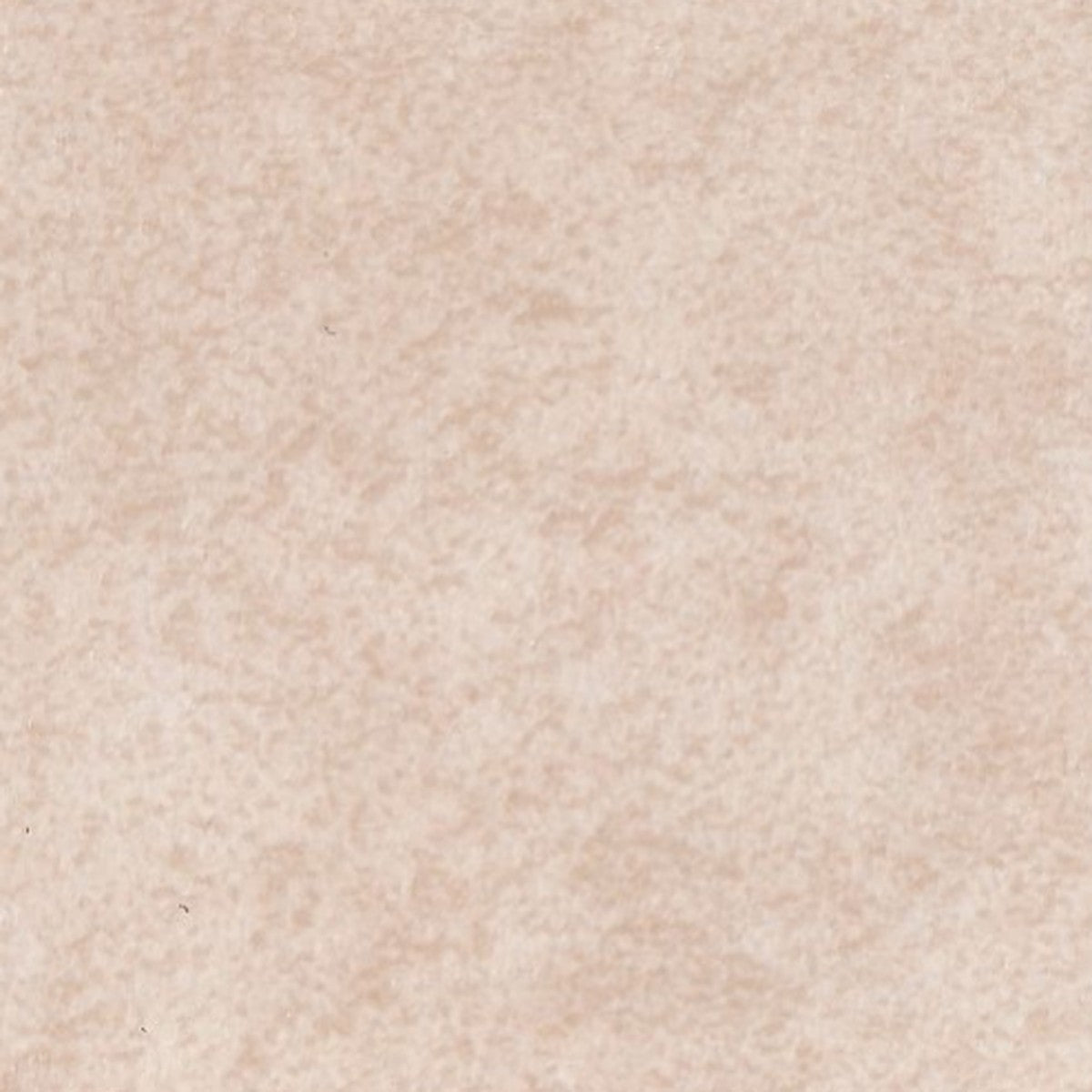

GL-6161-03A, GL-6161-04A, GL-6161-05A, GL-6161-06A, GL-6161-02A, GL-6161-07A, GL-6193-22A, GL-6193-21A, GL-6193-05A, GL-6193-20A, GL-6193-01A, GL-6193-09A, GL-6195-08A, GL-6195-01A, GL-6195-02A
Technical Data
| Property | Standard | Unit | Result |
|---|---|---|---|
| Product Name | - | - | PVC Commercial Heterogeneous Sheet |
| Total Thickness | GB/T 11982.1-2015 | mm | 2.0 |
| Wear Layer Thickness | GB/T 11982.1-2015 | mm | 0.3 |
| Roll Width | GB/T 11982.1-2015 | m | 2 |
| Roll Length | GB/T 11982.1-2015 | m | 20 |
| Weight | GB/T 11982.1-2015 | g/m² | 3400 |
| Appearance Inspection | GB/T 11982.1-2015 | - | Pass |
| Dimensional Stability – Lengthwise | GB/T 11982.1-2015 | % | 0.06 |
| Dimensional Stability – Crosswise | GB/T 11982.1-2015 | % | 0.02 |
| Curling After Heat Exposure | GB/T 11982.1-2015 | mm | 1 |
| Abrasion Resistance | GB/T 11982.1-2015 | mm³ | ≤2.0 |
| Color Fastness | GB/T 11982.1-2015 | Grade | 6 |
| Residual Indentation | GB/T 11982.1-2015 | mm | 0.03 |
| Flexibility | GB/T 11982.1-2015 | - | No Cracks |
| Castor Chair Test | GB/T 11982.1-2015 | - | Pass |
| Volatile Content | GB 18586-2001 | - | Pass |
| Slip Resistance Class | GB/T 37798-2019 | class | R9 |
| Stain Resistance | GB/T 11982.1-2015 | - | Pass |
| Fire Rating | GB 8624-2012 | - | B1 |
| Phthalates (DEHP/DBP/BBP) | GB/T 22048-2022 | mg/kg | Pass |
| TVOC Emission (3 Days) – 3-Star Rating | GB/T 29899-2024 | mg/(m²·h) | ≤0.50 |
| Soluble Heavy Metals: Hg/Cr/Cd/Pb | GB 18585-2023 | mg/kg | Pass |
| Vinyl Chloride Monomer (VCM) | GB/T 4615-1984 | mg/kg | Pass |
| Benzene | GB/T 4615-1984 | mg/kg | Pass |
Applications
Suitable for high-traffic areas such as medical and healthcare facilities, public buildings, educational institutions, sports venues, transportation hubs, industrial buildings, exhibition halls, commercial premises and retail services.
Quotes & Samples
Factory-direct OEM/ODM supply. Request a quote or order a free sample to confirm color and pattern; reply within 24 hours.
Colors shown are for reference only. Actual colors and patterns are subject to physical samples.
